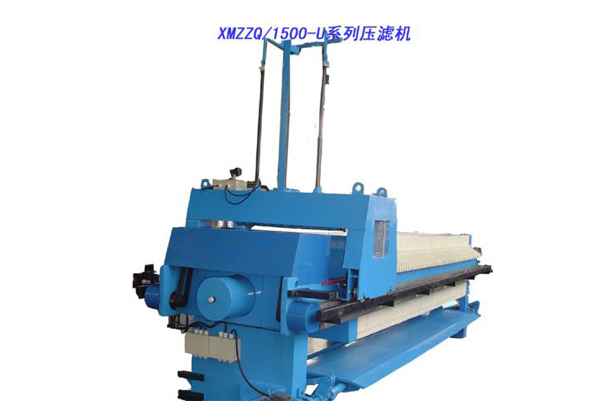

XMZZQ-1500-U

|
1、 Features
○ Die presses the reinforced polypropylene into filter plate, featuring smooth and flat surface, high intensity, light weight, acid and alkaline resistant, anticorrosion, nontoxic and inodorous.
○ The automatic hydraulic device is used for pressing and releasing the filter plate.The electrical contact pressure gauge is available to automatically maintain pressure. The operation of automatically pushing and pulling filter plate can be conducted by the automatic pulling plate which is driven by integratingmotor with fluid power.
○ The supporter is manufactured by welded steel structure with high intensity, featuring stable structure, long useful life, so it can support the maximum pressure from filtration.
○ Operation panel is easy and safe because of being equipped with mulfunction figuration of PLC auto-control, relaycontrol and safe device, which ensures safety to operators.
○ Nonmetal track is configured in track surface of the main beam, which is onceshaping and antiabrasive. Truss-bridge retractable structure is adopted in mainframe.
○ It is excellent equipment for solidiquid separation of suspensions, whose maximum filtering pressure is1.0Mpa.
2、Technical parameter:(The " * " signal means midship mounting)
|
| Filter Area(m2) |
200 |
220 |
250 |
280 |
320 |
340 |
400 |
450 |
500 |
560 |
| Thickness of cake(mm) |
35 |
35 |
35 |
35 |
35 |
35 |
35 |
35 |
35 |
35 |
|
Number of plates(piece)
|
51 |
55 |
63 |
71 |
81 |
87 |
101 |
115 |
127 |
143 |
|
|
|
